Overview - Sliding Sunroof

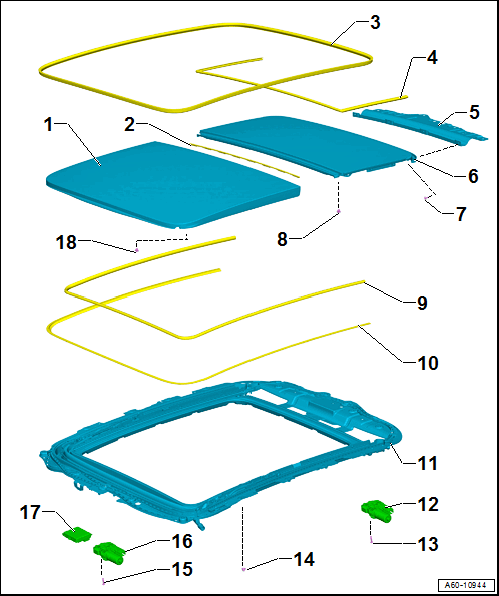

Fig 1: Exploded View Of Sliding Sunroof

Courtesy of AUDI OF AMERICA, LLC

Glass Panel
- Front
- Removing and installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, FRONT .
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
- Emergency Opening. Refer to EMERGENCY OPENING .
Seal
- For the front glass panel
- Removing and installing. Refer to GLASS PANEL SEAL, REMOVING AND INSTALLING, FRONT .
Seal
- Replace after removing.
- For roof opening
- Removing and installing. Refer to ROOF OPENING SEAL, REMOVING AND INSTALLING .
Seal
- For glass panel
- Removing and installing. Refer to GLASS PANEL SEAL, REMOVING AND INSTALLING, REAR .
Reinforcement Plate
Glass Panel
- Rear
- Removing and installing. Refer to GLASS PANEL, REMOVING AND INSTALLING, REAR .
- Adjusting. Refer to GLASS PANEL, ADJUSTING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Bolt
- 5.5 Nm
- Replace after removing.
- Self-locking
Screw
- 5.5 Nm
- Replace after removing.
- Self-locking
Seal
- Inner
- Attached from the inside onto the sunroof frame
Foam Seal
- Replace after removing.
- Bonded to the sunroof frame
Sunroof Frame
- Removing and installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Sunroof Shade Motor -V260-
- Removing and installing. Refer to Sunroof Shade Motor -V260-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Shade Motor -V260-, ADAPTING .
Bolt
- 3 Nm
- Quantity: 2
Nut
- 8 Nm
- Tightening sequence. Refer to Removing - Before removing the nuts, both technicians must hold the sunroof frame at the front and back. .
Bolt
- 3 Nm
- Quantity: 2
Sunroof Motor -V1-
- Removing and installing. Refer to Sunroof Motor -V1-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Motor -V1-, PROGRAMMING .
Sunroof Control Module -J245-
- Removing and installing. Refer to Sunroof Control Module -J245-, REMOVING AND INSTALLING .
- Perform the adaptation after installing. Refer to Sunroof Control Module -J245-, PROGRAMMING .
