Height Adjustment
- To achieve the best possible external appearance, make sure that the adjustment on the left and right sides is performed evenly as much as possible (symmetrically).
-- Check the glass panel adjustment using a depth gauge, for example. Refer to GLASS PANEL, ADJUSTING .
-- Close the sliding sunroof.
-- Remove the left and right inner seal on the side.
-- To adjust the front glass panel -1-, loosen the left and right front bolts -arrows-.
-- Adjust the glass panel -1- and tighten the screws.

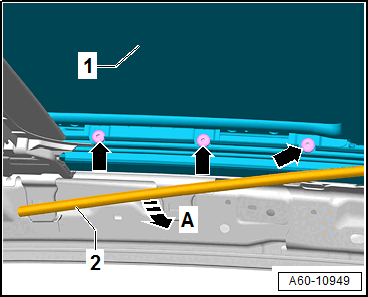

-- To adjust the rear glass panel -1-, remove the inner seal -2- in the rear area inward from the roof frame in direction of -arrow A-.
-- Loosen the left and right bolts -arrows-.

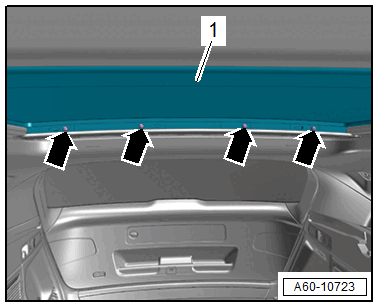

-- Loosen the bolts -arrows- on the rear of the glass panel -1-.
-- Adjust the glass panel -1- and tighten the screws.
-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
Tightening Specifications
- Refer to OVERVIEW - SLIDING SUNROOF
