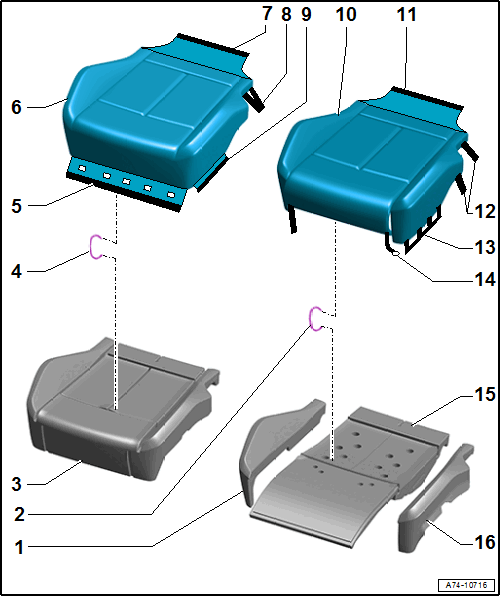

Overview - Seat Pan Cover And Cushion
- Seat Bolster Cushion
- Sport/Super Sport/Comfort seat
- Removing and Installing. Refer to SEAT BOLSTER CUSHION / COVER AND CUSHION ON SEAT PAN, REMOVING AND INSTALLING, COMFORT/SPORT/SUPER SPORT SEAT .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT BOLSTER HEATING ELEMENT, REMOVING AND INSTALLING .
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Cushion
- Standard Seat
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Cover
- Standard Seat
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Equipment versions with seat heating: heating element sewn into cover, replace the cover if faulty. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Rubber Tab
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Cover
- Sport/Super Sport/Comfort seat
- Covers and Cushions, Removing and Installing. Refer to SEAT BOLSTER CUSHION / COVER AND CUSHION ON SEAT PAN, REMOVING AND INSTALLING, COMFORT/SPORT/SUPER SPORT SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Equipment versions with seat heating: heating element sewn into cover, replace the cover if faulty. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Rubber Tab
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Rubber Tab
- with molding
- Sewn into cover
- Engaged in the seat pan to tighten the cover
- Rubber Band
- Quantity: 2
- Pushed into the cover mounting pocket
- Engaged in the seat pan and the seat depth adjuster to tighten the cover
- Seat Cushion
- Sport/Super Sport/Comfort seat
- Cover with Cushion, Removing and Installing. Refer to SEAT BOLSTER CUSHION / COVER AND CUSHION ON SEAT PAN, REMOVING AND INSTALLING, COMFORT/SPORT/SUPER SPORT SEAT .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Seat Bolster Cushion
- Sport/Super Sport/Comfort seat
- Removing and Installing. Refer to SEAT BOLSTER CUSHION / COVER AND CUSHION ON SEAT PAN, REMOVING AND INSTALLING, COMFORT/SPORT/SUPER SPORT SEAT .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT DEPTH ADJUSTER HEATING ELEMENT, REMOVING AND INSTALLING .
