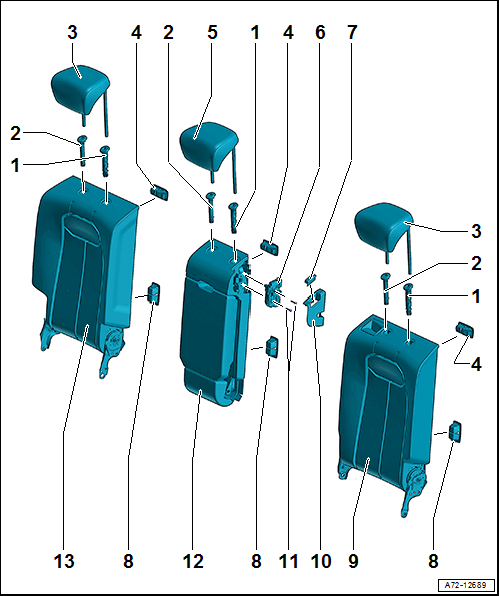

Overview - Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

Left Headrest Guide
- With the headrest height adjustment button
- Replace if damaged
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, LEFT SIDE .
Right Headrest Guide
- With locking spring
- Replace if damaged
- Removing and Installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, RIGHT SIDE .
Headrest
- Outside
- Quantity: 2
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Cover
- For the screen separator mount
- Removing and Installing. Refer to SCREEN SEPARATOR MOUNT COVER, REMOVING AND INSTALLING .
Headrest
- Center
- Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
Locking Mechanism
- For the rear seat backrest
- Removing and Installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
Release Button
- Press on until it engages audibly
Cover
- For the child seat anchor
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
Rear Seat Backrest
- 2/3 unit
- With pass-through
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
Trim
- For the locking mechanism
- Removing and Installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
Screw
- Quantity: 2
- 10 Nm
Backrest with Pass-Through
- Overview. Refer to OVERVIEW - BACKREST WITH PASS-THROUGH .
Rear Seat Backrest
- 1/3 unit
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
