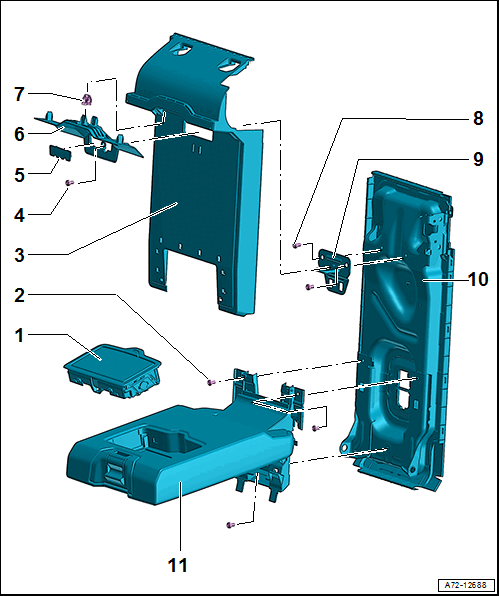

Overview - Backrest With Pass-Through
- Cupholder
- Removing and Installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
- Screw
- Quantity: 3
- 10 Nm
- Cover Frame
- For pass-through
- Removing and Installing. Refer to PASS-THROUGH COVER FRAME, REMOVING AND INSTALLING .
- Screw
- 4 Nm
- Cap
- Clipped into the striker for the center armrest striker
- Press on until it engages audibly
- Cover
- For center armrest striker
- Clip
- Quantity: 4
- Screw
- Quantity: 2
- 10 Nm
- Striker
- Backrest Frame
- For folding backrest
- Removing and Installing. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .
- Center Armrest
- Removing and Installing. Refer to CENTER ARMREST, REMOVING AND INSTALLING .
