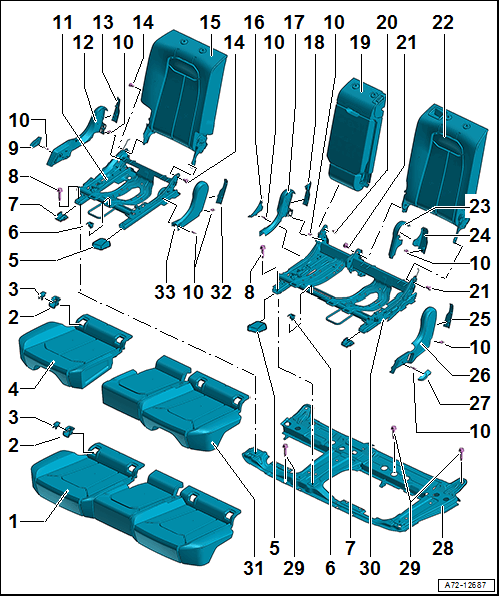

Overview - Bench Seat/Single Seats
- Bench Seat
- One piece
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Guide
- For the child seat anchor
- Quantity: 4
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Cap
- For the child seat anchor
- Quantity: 4
- Removing and Installing. Refer to REAR CHILD SEAT ANCHOR, REMOVING AND INSTALLING .
- Bench Seat
- 1/3 unit
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cap
- Inner seat rail
- Unclip forward
- Retainers
- For securing bench seat
- Equipment version: one-piece version: quantity 3, multi-piece version: quantity 4
- Clipped into the seat frame, to remove release the catches from below
- Replace after removing the bench seat
- Cap
- Out seat rail
- Unclip forward
- Screw
- Quantity: 8
- 50 Nm
- Handle
- For the folding backrest handle
- Expanding Clip
- Quantity: 9
- Seat Frame
- For 1/3 unit
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- Trim Panel
- Outer seat frame
- Removing and Installing. Refer to OUTER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Cover
- For outer seat frame trim panel
- Removing and Installing. Refer to OUTER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Screw
- Quantity: 4
- Self-locking
- Replace after removing.
- 85 Nm
- Rear Seat Backrest
- 1/3 unit
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Seat Belt Latch Trim
- For inner seat frame trim panel
- Removing and Installing. Refer to INNER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Trim Panel
- Inner seat frame
- Removing and Installing. Refer to INNER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Cover
- For inner seat frame trim panel
- Removing and Installing. Refer to INNER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Backrest with Pass-Through
- Overview. Refer to OVERVIEW - BACKREST WITH PASS-THROUGH .
- Screw
- Quantity: 2
- 25 Nm
- Screw
- Quantity: 4
- Self-locking
- Replace after removing.
- M14 X 16: 126 Nm
- M12 X 18: 79 Nm
- Rear Seat Backrest
- 2/3 unit
- Removing and Installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Trim Panel
- Center seat frame
- Removing and Installing. Refer to CENTER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Cover
- For seat frame trim panel
- Removing and Installing. Refer to CENTER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Cover
- For outer seat frame trim panel
- Removing and Installing. Refer to OUTER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Trim Panel
- Outer seat frame
- Removing and Installing. Refer to OUTER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Handle
- For the folding backrest handle
- Mount
- For the seat frame
- Removing and Installing. Refer to SEAT FRAME MOUNT, REMOVING AND INSTALLING .
- Screw
- Quantity: 15
- Note the different bolt versions
- 50 Nm
- Seat Frame
- For 2/3 unit
- Removing and Installing. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
- Bench Seat
- 2/3 unit
- Removing and Installing. Refer to COVER AND CUSHION, REMOVING AND INSTALLING, REAR BENCH SEAT .
- Cover
- For inner seat frame trim panel
- Removing and Installing. Refer to INNER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Trim Panel
- Inner seat frame
- Removing and Installing. Refer to INNER SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .
