Seat Frame Trim Panel/Control Module/Compressor Bracket, Removing And Installing: Removing

-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Loosen the seat functions control module. Refer to SEAT FUNCTIONS CONTROL MODULE, REMOVING AND INSTALLING .

-- If necessary, remove the pneumatic seat compressor. Refer to PNEUMATIC SYSTEM COMPRESSOR, REMOVING AND INSTALLING .

-- If necessary, remove the Passenger Occupant Detection System Control Module -J706-. Refer to COMPONENT LOCATION OVERVIEW - PASSENGER OCCUPANT DETECTION SYSTEM .

-- If necessary, remove the front seat frame trim panel. Refer to FRONT SEAT FRAME TRIM PANEL, REMOVING AND INSTALLING .

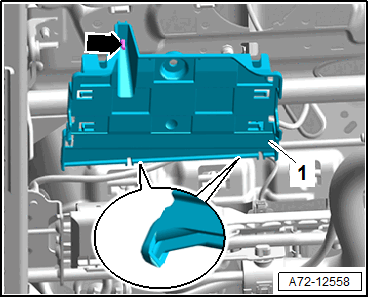

Power Standard seat:

Courtesy of AUDI OF AMERICA, LLC

-- Press the pin -arrow- toward the seat cushion and out of the bracket.

-- Remove the pin that was pressed out from the seat pan.

-- Unclip the bracket support from the seat pan using a flat-head screwdriver.

-- Detach the bracket -1- at the rear of the seat pan and remove it.

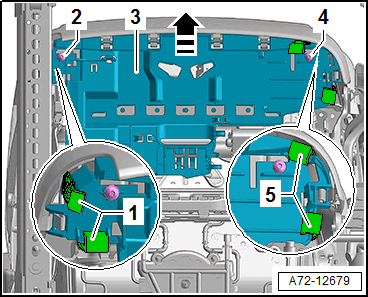

Comfort/Sport/Super Sport seat:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 4-.

-- Disengage the hooks -1 and 5-.

-- Remove the front seat frame trim panel bracket -3- forward from the guides direction of the -arrow-.
