Component Location Overview - Passenger Occupant Detection System

The seat heating element is used for the passenger occupant detection system.

Fig 1: Exploded View Of Passenger Occupant Detection System

Courtesy of AUDI OF AMERICA, LLC

Wiring Harness
- For the seat heating element with passenger occupant detection system
- Connector station in the underbody under the seat.
- Removing and Installing. Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
Nut
- 1.5 Nm
Front Passenger Seat Heating Element with Passenger Occupant Detection System Control Module -ZX14-
- Market-Specific Version
- The seat heating element is used for the passenger occupant detection system.
- With Front Passenger Seat Heating Element -Z8- and Passenger Seat Occupant Detection Sensor -G128-
- Depending on the seat version, the Passenger Seat Occupant Detection Sensor -G128- is either sewn into the cover with the seat heating element, or bonded onto the cushion
- Removing and Installing. Refer to Passenger Seat Occupant Detection Sensor -G128-, REMOVING AND INSTALLING .
Front Passenger Seat Position Sensor -G554-
- Driver seat: Driver Seat Position Sensor -G553-
- Removing and Installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
Bolt
- Tightening specification ) OVERVIEW - SEAT POSITION SENSOR - List Item: Bolt
Wiring Harness
- For the seat position sensor/seat belt fastening detection/seat belt switch
- Connector station in the underbody under the seat.
- Removing and Installing. Refer to SEAT POSITION SENSOR, REMOVING AND INSTALLING .
Passenger Occupant Detection System Control Module -J706-
- Removing and Installing. Refer to Passenger Occupant Detection System Control Module -J706-, REMOVING AND INSTALLING .

Control Module Tightening Specification on Bracket - Standard seat

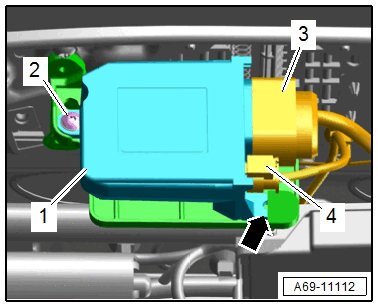

Fig 2: Control Module Tightening Sequence on Bracket - Standard Seat

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -2- to 1.5 Nm.
