Backrest Cover, Removing And Installing, Super Sport Seat: Notes

Special tools and workshop equipment required

• Removal Wedge Set :VAS895 015

Removing

-- Move the front seat all the way forward and up.

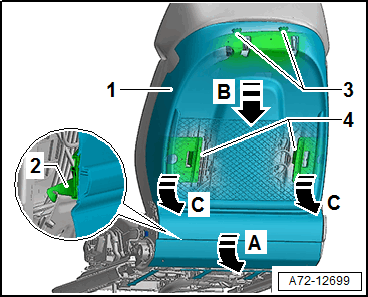

-- Release the backrest cover tension bands -arrow- at the bottom of the seat pan.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the hook for the lower backrest cover -2- from the backrest cover -direction of arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Secure the backrest cover -1- over the upper edge and release the catches -3-. Refer to Release the upper catches: .

Tip:

Check if the hook on the lower backrest cover -2- is loosened from the backrest frame.

-- Remove the side hook -4- for the backrest cover -1- from the backrest frame in the -direction of arrow C-.
