Overview - Fuel Tank, Market-Specific North AMERICA Market Versions

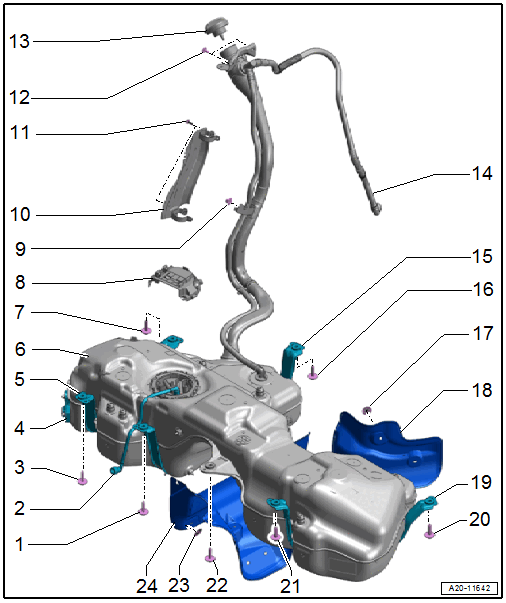

Fig 1: Exploded View Of Fuel Tank, Market-Specific North America Market Versions

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 20 Nm
2. Fuel Line
   • To the engine
   • Do not kink
   • Clipped to the fuel tank
   • Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
3. Bolt
   • 20 Nm
4. Fuel Tank Leak Detection Control Module -J909-
   • Equipped on some models, vehicles without Fuel Tank Leak Detection Module: GX36
5. Mounting Strap
6. Fuel Tank
   • Removing and Installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
   • Ground connection for discharging electrostatic charge. Refer to FUEL FILLER NECK GROUND CONNECTION .
7. Bolt
   • 20 Nm
8. Bracket
   • For Fuel Pump Control Module -J538-
9. Nut
   • 2.5 Nm
   • For securing the fuel filler neck
10. Protective Plate
    • For the fuel filler neck
11. Screw
    • 3.5 Nm
    • Quantity: 2
12. Screw
    • 8 Nm
    • For securing the fuel filler neck
    • Quantity: 2
13. Cap
    • Turn until it clicks into place.
    • Attached to the fuel filler door unit with fastener
14. Bleeder Line
    • To the EVAP Canister
    • Do not kink
    • Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
15. Mounting Strap
16. Bolt
    • 20 Nm
17. Lock Washer
    • 0.4 Nm
    • For the heat shield
    • Quantity: 3
18. Heat Shield
    • For the fuel tank
19. Mounting Strap
20. Bolt
    • 20 Nm
21. Bolt
    • 20 Nm
22. Bolt
    • 20 Nm
23. Lock Washer
    • 0.4 Nm
    • For the heat shield
    • Quantity: 7
24. Heat Shield
    • For the fuel tank
