Fuel Filler Neck Ground Connection

WARNING:

Danger due to electrostatic charge.

After installing, check the electrical connection on the fuel filler neck threaded ring to a bare spot on the body using an ohmmeter.

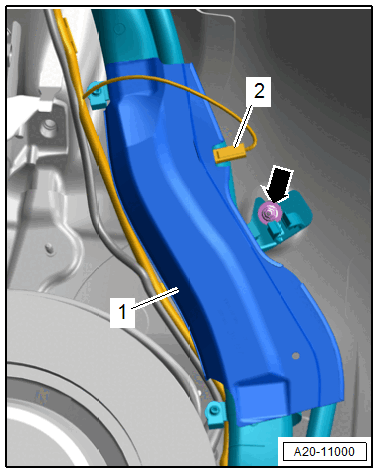

-- Route the ground wire as illustrated.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the ground wire connector -2- is securely fastened to the metal ring on the fuel filler neck.

-- North America/China versions: make sure the ground wire connector -2- is securely fastened to the protective plate -1- for the fuel filler neck.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore the -arrow-.
