Motor Temperature Sensor -G407-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the left lower pressure pipe. Refer to LOWER PRESSURE PIPE, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

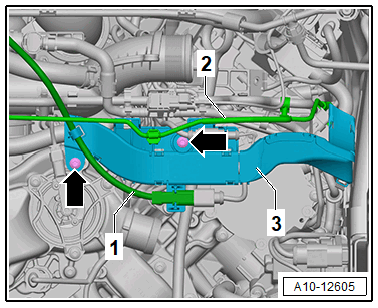

Fig 1: Component Location: on the Front of the Engine, Cylinder Bank 2 (Left)

Courtesy of AUDI OF AMERICA, LLC

-- Unclip and free up the vacuum line -2- on the wiring duct -3-.

-- Push the wiring duct -3- upward.

All additional procedures are described. Refer to Motor Temperature Sensor -G407-, REMOVING AND INSTALLING .
