Seat Belt Attachment Points Overview
CAUTION:
DO NOT re-use any fasteners that are worn or deformed in normal use. Many fasteners are designed to be used only once and become unreliable and may fail when used a second time. This includes, but is not limited to, nuts, bolts, washers, self-locking nuts or bolts, circlips, cotter pins. Always follow recommendations given in this publication. For replacements always use new parts.

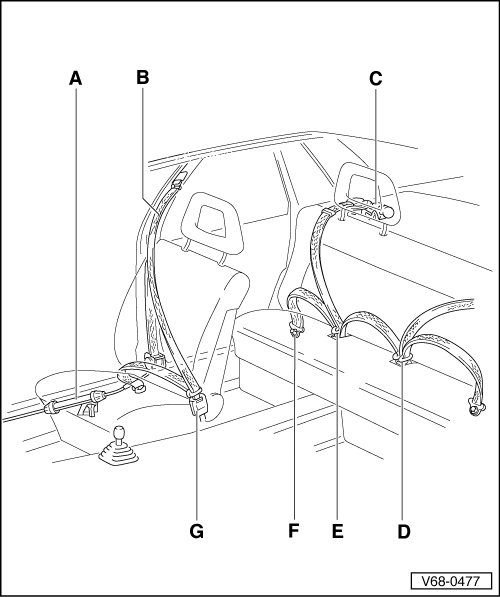

A - Retractor Cable Tube
- Removing, refer to RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW .
B - Three-Point Seat Belt - B-pillar
- Removing, 1992-1994, refer to THREE-POINT SEAT BELT, B-PILLAR ASSEMBLY OVERVIEW, 1992-1994 .
- Removing, from 1995, refer to SEAT BELT ATTACHMENT POINTS, FROM 1995 .
C - Three-Point Rear Shoulder Belt
- Removing, refer to THREE-POINT REAR SHOULDER BELT .
D - Attachment Point - Left Rear Center
- Removing, refer to SEAT BELT ATTACHMENT POINT, LEFT REAR CENTER .
E - Attachment Point - Right Rear Center
- Without retractor, refer to SEAT BELT ATTACHMENT POINT, RIGHT REAR CENTER .
- With retractor, refer to SEAT BELT ATTACHMENT POINT, RIGHT REAR CENTER .
F - Attachment Point - Outer Rear Floor
G - Attachment Point - Seat Frame
- Refer to SEAT BELT ATTACHMENT POINT, SEAT FRAME .
