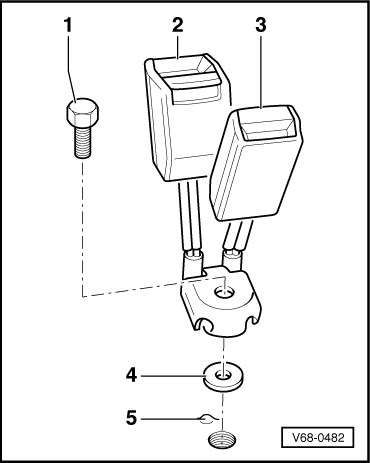

Seat Belt Attachment Point, Left Rear Center

Courtesy of AUDI OF AMERICA, LLC

1 -

Bolt, 50 Nm (37 ft lb)

2 -

Buckle for center seat

3 -

Buckle for outer seat

4 -

Seal

5 -

Welding projection

-- Buckle buttons must point toward each other.
