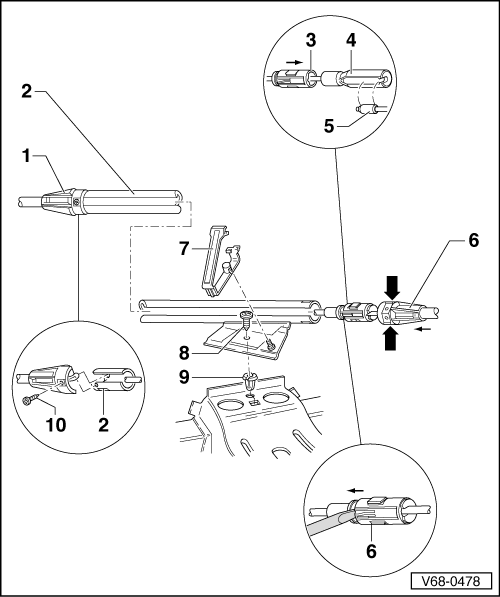

Retractor Cable Tube Assembly Overview

-- Remove sill panel trim. Refer to SILL PANEL TRIM ASSEMBLY OVERVIEW .

-- Pull up carpet in area of front seat.

Courtesy of AUDI OF AMERICA, LLC

1. Cap
2. Tube

   Removing:

   -- Remove cable clip  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Cable clip.

   -- Unscrew combi bolt  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Bolt.

   -- Unscrew bolt  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Bolt.

   -- Unhook cap  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Cap.

   -- Press in spring lugs -arrows-.

   -- Pull cap  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Cap out of tube  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Tube.

   -- Lift up spring lug with flat screwdriver.

   -- Slide locking-cap  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Locking Cap off cover  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Coupling.

   -- Remove nipple  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Nipple from coupling  RETRACTOR CABLE TUBE ASSEMBLY OVERVIEW => List Item: Coupling.

   Installing:

   -- Install all components in reverse order of removal.

3. Locking Cap
4. Coupling
5. Nipple
6. Cap
   • Leads to retractor of B-pillar seat belt.
7. Cable clip
8. Bolt
   • 2.0 Nm (18 in lb)
   • Self-tapping
9. Spreader Nut
10. Bolt
    • 2.0 Nm (18 in lb)
    • Self-tapping
