Sill Panel Trim Assembly Overview

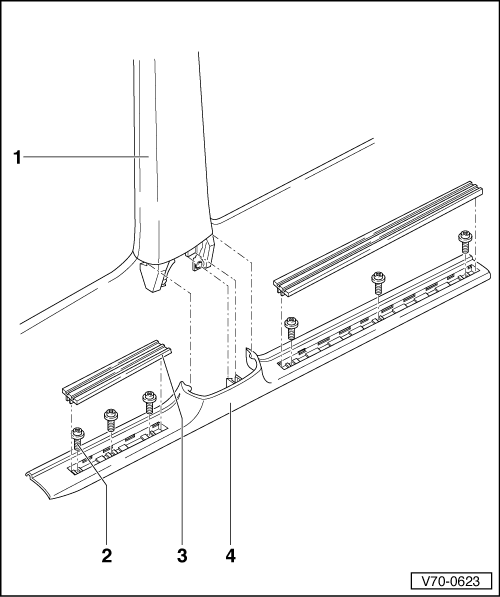

Fig 1: Exploded View Of Sill Panel Trim Assembly
GWWV70-0623Courtesy of AUDI OF AMERICA, LLC
  1. B-Pillar Trim
  2. Combi Bolts
    • 2.0 Nm (18 in lb)
  3. Trim Strip
    • Pry off upward.
  4. Sill Panel Trim
    • Unhook locking tabs from B-pillar trim.
