Convertible Top Compartment -Open- Switch -F407-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Bring the convertible top into its service position. Refer to Position : .
-- Remove the side trim panel for the convertible top compartment. Refer to the appropriate service information .

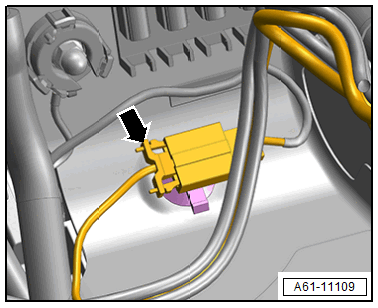

-- Disconnect the connector -arrow- and free up the wiring harness.
-- Release the securing tab -1- in direction of -arrow- open the bracket downward and remove the cable holder -7- from the lower ball pin.
-- Release the catch -6- and remove the cable holder with the wiring harness from the hydraulic cylinder -5-.
-- Release the catches -2- and remove the cover -3- from the hydraulic cylinder -1-.
-- Cut through the cable ties -4-.
-- Turn the hydraulic line -2- to the side.
-- Remove the bolt -3-.
-- Remove the switch -1-.
