Position :

WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

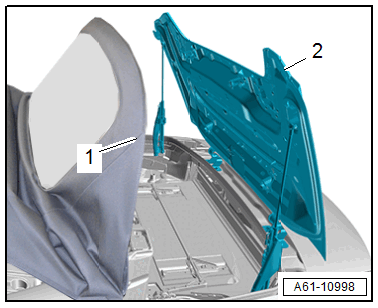

GWWA61-10998Courtesy of AUDI OF AMERICA, LLC

-- Open the convertible top until the displayed position of the tensioning bracket -1- and the convertible top compartment cover -2- is reached.

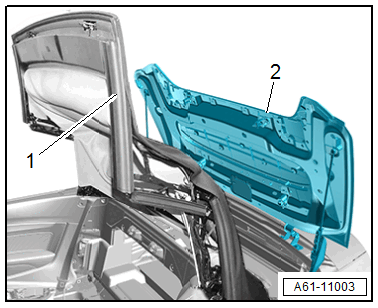

GWWA61-11003Courtesy of AUDI OF AMERICA, LLC

-- Open the convertible top until the displayed position of the convertible top -1- and the convertible top compartment cover -2- is reached.
