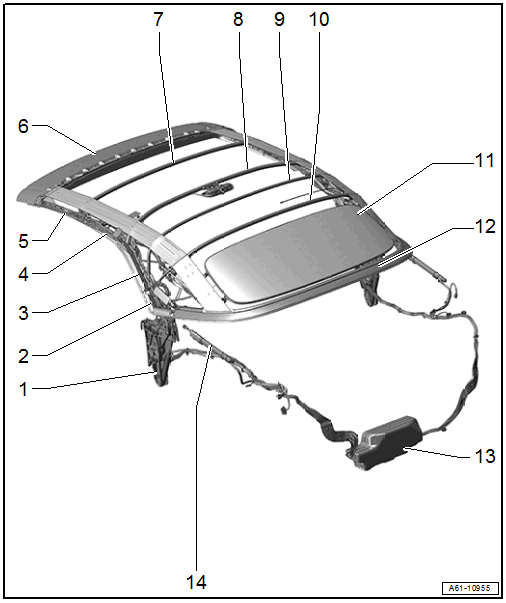

Overview - Convertible Top Frame
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Overview - Convertible Top Frame Attachments. Refer to OVERVIEW - CONVERTIBLE TOP FRAME ATTACHMENTS .
- Main Bearing
- Overview. Refer to OVERVIEW - CONVERTIBLE TOP MAIN BEARING .
- Frame Track 2
- For the convertible top seal
- Frame Track 1
- For the convertible top seal
- Roof Guide 2
- Roof Guide 1
- Front Rail
- Bow 2
- Bow 3
- Bow 4
- Bow 5
- Rear Window
- Tensioning Bracket
- Hydraulic Pump
- Overview. Refer to OVERVIEW - HYDRAULIC SYSTEM .
- Hydraulic Cylinder
- Overview. Refer to OVERVIEW - HYDRAULIC SYSTEM .
