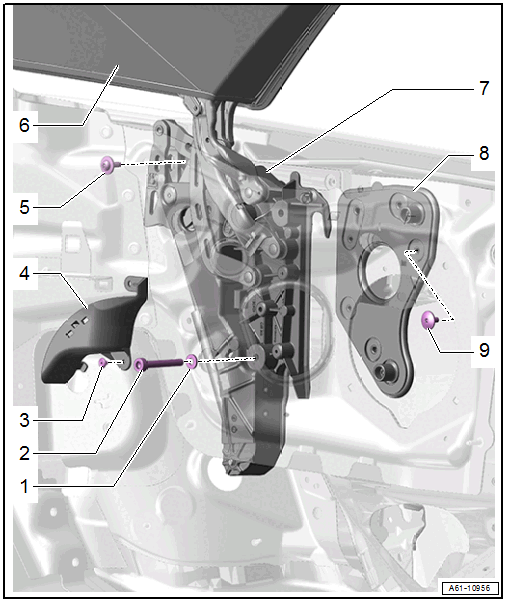

Overview - Convertible Top Main Bearing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer
- Quantity: 3
- Bolt
- 33 Nm
- Quantity: 3
- Rivet
- Cable Guide
- Bolt
- 8 Nm
- Convertible Top
- Removing and Installing. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .
- Convertible Top Main Bearing
- Retaining Plate
- Removing and Installing. Refer to CONVERTIBLE TOP RETAINING PLATE, REMOVING AND INSTALLING .
- Bolt
- 15 Nm
- Replace after removing.
- Quantity: 3
