Rear Lid Relay Lever Tension Cable, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Bring the convertible top into its service position. Refer to Position .

-- Remove the end piece -4- of the convertible top seal from the retaining strip -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the convertible top seal -2- from the retaining strip.

-- Loosen the retaining studs -1- from the retaining strip.

-- Remove the convertible top cover connection -5- from the retaining strip -6- and carefully remove the convertible top seal -arrow-.

-- Tape off the clamping brackets of the commercially available wide jaw locking pliers -3- with felt strips -1 and 2- to protect the convertible top cover.

Fig 1: Attaching Commercially Available Clamping Bracket Locking Pliers -3- With Felt Strip -1, 2- To Protect Convertible Top Cover

Courtesy of AUDI OF AMERICA, LLC

-- Using the wide jaw locking pliers -2-, remove the retaining strip on the convertible top cover -1- from the frame on the rear main guide.

Courtesy of AUDI OF AMERICA, LLC

-- Push the convertible top cover to the side.

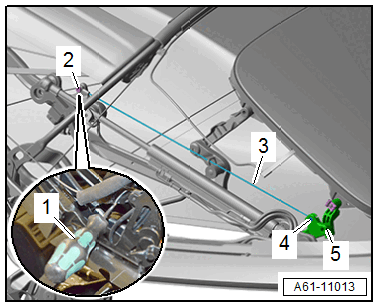

-- Position the screwdriver -1- as shown on the main bearing and remove the bolt -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear window relay lever. Refer to REAR WINDOW RELAY LEVER, REMOVING AND INSTALLING .

-- Remove the tension cable -3- with the rear lid relay lever -4-.
