Convertible Top And Convertible Top Compartment Cover Service Position: Position
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

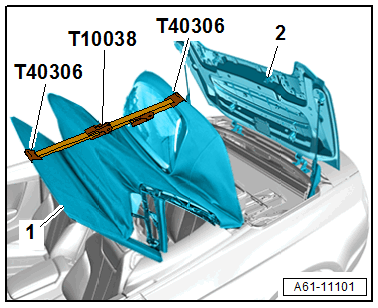

-- Open the convertible top until the displayed position of the convertible top -1- and the convertible top compartment cover -2- is reached.
- The convertible top compartment cover must have reached its end position.
-- Secure the convertible top compartment cover in the "open" position against unintentional closing.
-- Thread the two :T10038 into the :T40306 and turn the quick-action clamps three times on the shaft.
-- Engage the front and rear :T40306 in the center of the convertible top edge and adjust the tension if necessary.
