Shock Absorber, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Bring the convertible top into its service position. Refer to Position : .

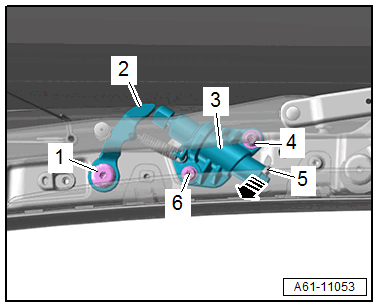

-- Remove the bolts -1, 4 and 6-.
-- Remove the release lever -2- with the shock absorber -3-.
-- Slide the shock absorber toward the vehicle interior out of the mount -5- -arrow-.
