Rear Convertible Top Seal, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

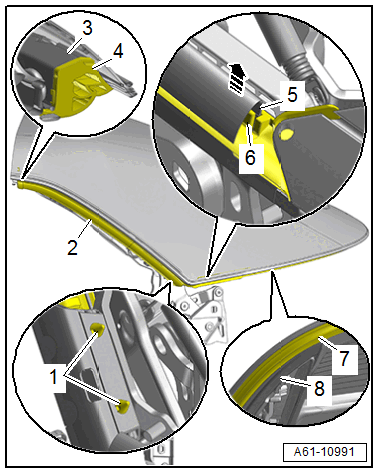

-- Bring the convertible top into its service position. Refer to Position : and Position : .
-- Remove the end piece -4- of the convertible top seal from the retaining strip -3-.
-- Remove the convertible top seal -2- from the retaining strip.
-- Loosen the retaining studs -1- from the retaining strip.
-- Remove the convertible top cover connection -5- from the retaining strip -6- and carefully remove the convertible top seal -arrow-.
-- Remove the convertible top seal -7- on the tensioning bracket -8- and remove.
