Connecting Rod, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Bring the convertible top into its service position. Refer to Position : .

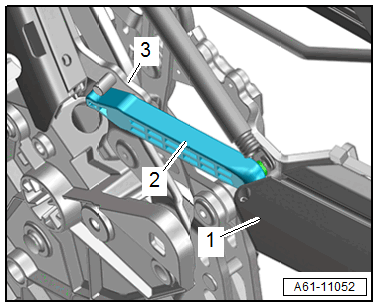

-- Pry up the connecting rod -2- on the main guide -3- and the tensioning bracket -1- from the ball pin.
