Overview - Interior Monitoring

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

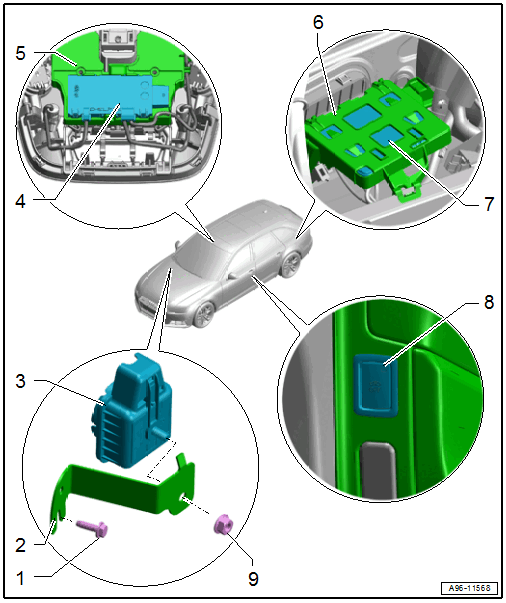

Fig 1: Interior Monitoring

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 8 Nm
Bracket
- For Alarm Horn -H12-
Alarm Horn -H12-
- Removing and installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
Anti-Theft Alarm System Sensor -G578-
- With interior monitoring individual sensor
- Removing and installing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
Front Roof Module -WX3-
Bracket
- For the comfort system central control module
Comfort System Central Control Module -J393-
- Removing and installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROLS IN FRONT DOORS .
Nut
- 7 Nm
