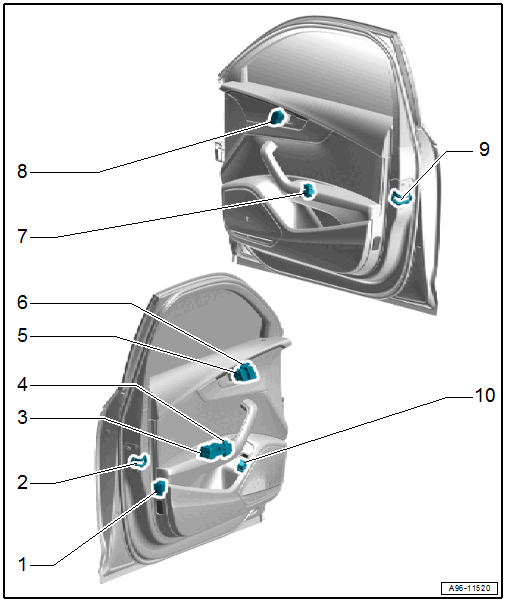

Component Location Overview - Controls In Front Doors
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Removing and Installing. Refer to Interior Monitoring and Vehicle Inclination Deactivation Button -E616-, REMOVING AND INSTALLING .
- Driver Door Contact Switch -F2-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Door Lock, Replacing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -E512-
- With the following integrated components
- Driver Power Window Button -E710-
- Driver Side Rear Power Window Button In Driver Door -E712-
- Passenger Side Rear Power Window Button In Driver Door -E714-
- Front Passenger Power Window Button in Driver Door -E715-
- The components cannot be replaced separately.
- Replace the control head if faulty
- Removing and Installing. Refer to Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING .
- With the following integrated components
- Mirror Adjusting Switch -E43- with Mirror Adjusting Switch -E48-
- Removing and Installing. Refer to MIRROR ADJUSTING SWITCHES -E43- / -E168-, REMOVING AND INSTALLING .
- Driver Interior Locking Button -E308-
- Removing and Installing. Refer to Driver Interior Locking Button -E308-, REMOVING AND INSTALLING .
- Driver Seat Memory Settings Control Head -E464-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD -E464- / -E465-, REMOVING AND INSTALLING .
- Front Passenger Power Window Button -E716-
- Removing and Installing. Refer to Front Passenger Door Window Regulator Switch -E107-, REMOVING AND INSTALLING .
- Front Passenger Interior Locking Button -E309-
- Removing and Installing. Refer to Driver Interior Locking Button -E308-, REMOVING AND INSTALLING .
- Front Passenger Door Contact Switch -F3-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Door Lock, Replacing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Rear Lid Remote Release Button -E233-
- Removing and Installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
