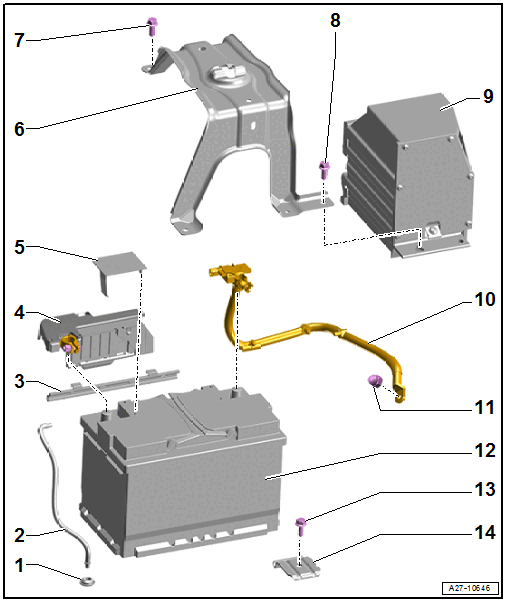

Battery -A-
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- For the central venting system hose
- Central Venting System Hose
- Battery Clamping Strip Stop
- Main Fuse Panel
- Nut: 5 Nm
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0 .
- Positive Terminal Cover
- Retaining Bracket
- For the vehicle tool kit cover
- Bolt
- 20 Nm
- Quantity: 2
- Bolt
- 20 Nm
- Quantity: 2
- Protective Housing
- For Auxiliary Battery -A1-
- Overview. Refer to Auxiliary Battery -A1- .
- Ground Wire
- Nut: 5 Nm
- With Battery Monitoring Control Module -J367-
- Disconnecting and Connecting. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K4 AND VH0 .
- Removing and Installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING, 0K4 AND VH0 .
- Nut
- 18 Nm
- Battery -A-
- Checking. Refer to BATTERY, CHECKING .
- Removing and Installing. Refer to Battery -A-, REMOVING AND INSTALLING, 0K4 AND VH0 .
- Bolt
- 18 Nm
- Retaining Bracket
