Overview - Locking Mechanism

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

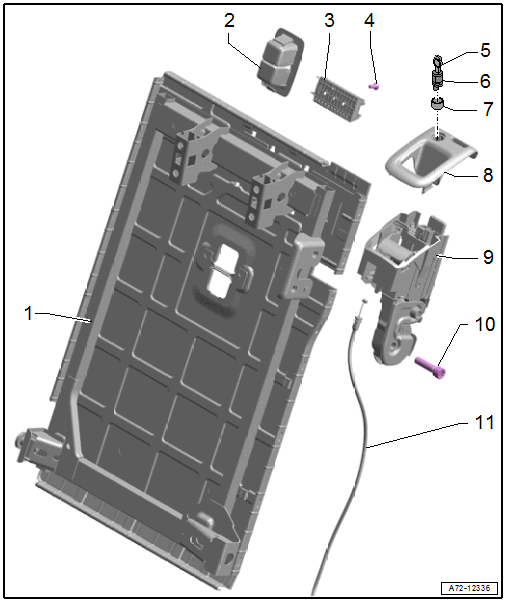

Fig 1: Exploded View Of Locking Mechanism

Courtesy of AUDI OF AMERICA, LLC

Backrest Frame
- For the left folding backrest
- Right backrest frame with center folding backrest mount
Cover
- For the child seat anchor
Screen Separator Mount
Bolt
- Tightening specification. Refer to OVERVIEW - SCREEN SEPARATOR
Key
- Sedan only
Lock Cylinder
- Sedan only
- Removing and installing. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .
Protective Cap
- For lock cylinder
- Sedan only
- Remove before installing the lock cylinder
Trim
- For locking and lock cylinder
- Removing and installing. Refer to LOCKING MECHANISM TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Locking Mechanism
- For the rear seat backrest
- Removing and installing. Refer to REAR SEAT BACKREST LOCKING MECHANISM, REMOVING AND INSTALLING .
Bolt
- 25 Nm
- Quantity: 2
Release Cable
- For remote backrest release
