Component Location Overview - Relay Panel, Instrument Panel, E-Boxes, Luggage Compartment
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

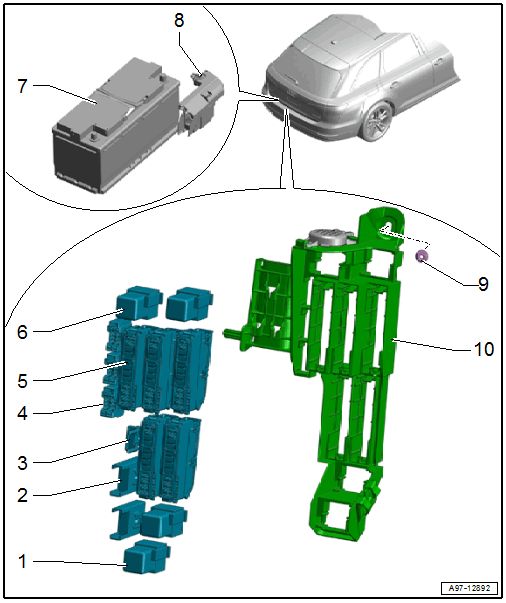

- Relay Mount
- Allocation. Refer to the appropriate Wiring Diagram.
- Auxiliary Fuse Panel
- Allocation. Refer to the appropriate Wiring Diagram.
- Auxiliary Fuse Panel
- Allocation. Refer to the appropriate Wiring Diagram.
- Fuse Panel
- Allocation. Refer to the appropriate Wiring Diagram.
- Fuse Panel
- Allocation. Refer to the appropriate Wiring Diagram.
- Relay Mount
- Allocation. Refer to the appropriate Wiring Diagram.
- Battery
- Main Fuse Panel
- Overview. Refer to OVERVIEW - MAIN FUSE PANEL .
- Nut
- 3 Nm
- Relay and Fuse Panel 2 -SR2-
- Removing and Installing. Refer to Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING .
