Overview - Rear Door Trim Panel

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

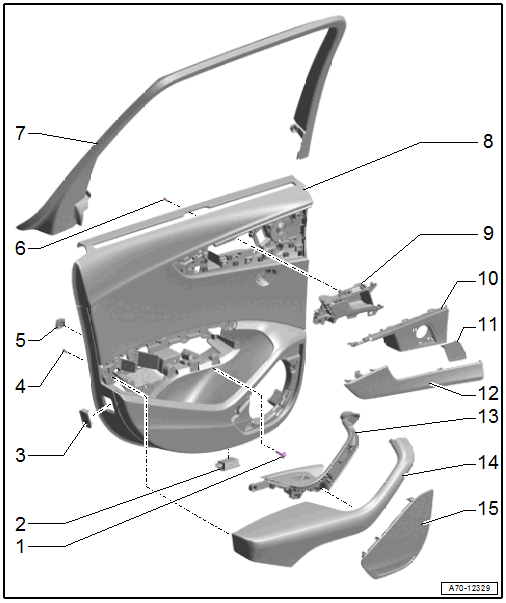

Fig 1: Exploded View Of Rear Door Trim Panel

Bolt
- 2.5 Nm
- For door trim panel
- Quantity: 3
Rear Entry Lamp
- Driver Side Rear Entry Lamp -W83-
- Passenger Side Rear Entry Lamp -W84-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - REAR DOOR LAMPS .
Rear Reflector
- Equipped on some models:
  - Driver Side Rear Exit Warning Lamp -W113-
  - Passenger Side Rear Exit Warning Lamp -W114-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - REAR DOOR LAMPS .
Bolt
- 1.2 Nm
- For pull handle with armrest
- Quantity: 15
Clip
- For door trim panel
- Insert in the trim panel
- Quantity: 7
Bolt
- 1.2 Nm
- For the interior door mechanism
- Quantity: 3
Window Frame Trim Panel
- Removing and installing. Refer to WINDOW FRAME TRIM PANEL, REMOVING AND INSTALLING .
Door Trim Panel
- Removing and installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Interior Door Mechanism Decorative Trim
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
Speaker Trim
- For the treble speaker
- Removing and installing. Refer to SPEAKER TRIM IN DOOR TRIM PANELS, REMOVING AND INSTALLING .
- Press on until it engages audibly
Decorative Trim
- Removing and installing. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .
Switch Mount
- Removing and installing. Refer to REAR PULL HANDLE, REMOVING AND INSTALLING .
Pull Handle with Armrest
- Removing and installing. Refer to REAR PULL HANDLE, REMOVING AND INSTALLING .
Speaker Trim
- For the bass speaker
- Removing and installing. Refer to SPEAKER TRIM IN DOOR TRIM PANELS, REMOVING AND INSTALLING .
- Engage in the door trim panel and press on it until it engages audibly
