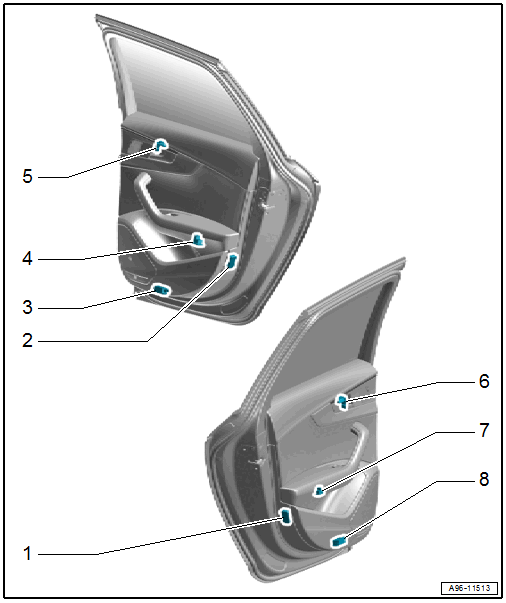

Component Location Overview - Rear Door Lamps
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Door Warning Reflector
- Front Passenger Side Door Warning Reflector
- Passenger Side Rear Entry Lamp -W84-
- Removing and Installing. Refer to REAR ENTRY LAMPS, REMOVING AND INSTALLING .
- Right Rear Door Storage Compartment Illumination Lamp -L258-
- Removing and Installing. Refer to LEFT/RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP -L257- / -L258-, REMOVING AND INSTALLING .
- Passenger Side Rear Interior Door Handle Illumination Bulb -L222-
- Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Driver Side Rear Interior Door Handle Illumination Bulb -L221-
- Removing and Installing. Refer to REAR INTERIOR DOOR HANDLE ILLUMINATION LAMP, REMOVING AND INSTALLING .
- Left Rear Door Storage Compartment Illumination Lamp -L257-
- Removing and Installing. Refer to LEFT/RIGHT REAR DOOR STORAGE COMPARTMENT ILLUMINATION LAMP -L257- / -L258-, REMOVING AND INSTALLING .
- Driver Side Rear Entry Lamp -W83-
- Removing and Installing. Refer to REAR ENTRY LAMPS, REMOVING AND INSTALLING .
