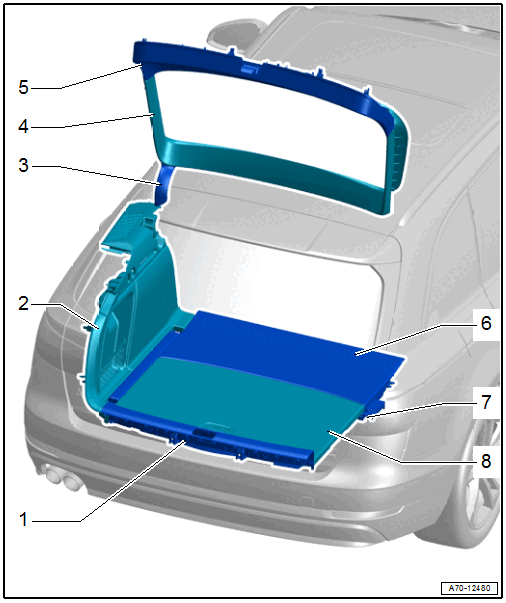

Component Location Overview - Luggage Compartment Trim Panels, AVANT
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Carrier Trim Panel
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
- Luggage Compartment Side Trim Panel
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
- Rear Lid Hinge Trim Panel
- Clip onto the rear lid hinge
- Rear Lid Upper Trim Panel
- Overview. Refer to OVERVIEW - REAR LID TRIM PANEL, AVANT .
- Rear Lid Lower Trim Panel
- Overview. Refer to OVERVIEW - REAR LID TRIM PANEL, AVANT .
- Front Luggage Compartment Floor
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
- Luggage Compartment Floor Support
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL, AVANT .
- Rear Luggage Compartment Floor
- Overview. Refer to OVERVIEW - LUGGAGE COMPARTMENT FLOOR .
