Overview - Rear Lid Trim Panel, AVANT

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

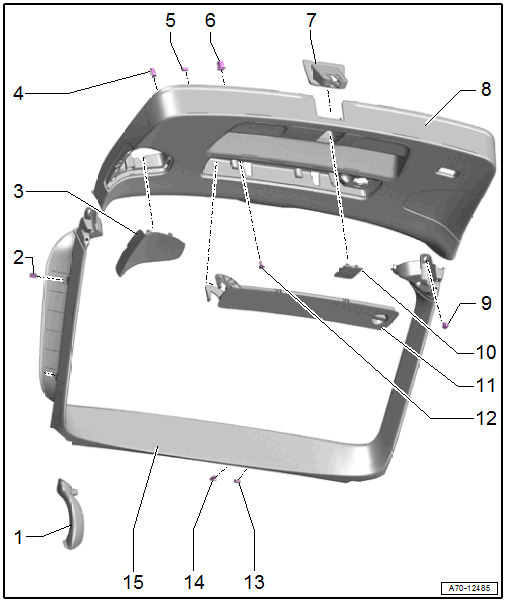

Fig 1: Exploded View Of Rear Lid Trim Panel, Avant

Rear Lid Hinge Trim Panel
- Clip onto the rear lid hinge
- Quantity: 2
Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Quantity: 4
Tail Lamp Cover
- Clipped in the rear lid trim panel
- Quantity: 2
Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Quantity: 10
Rubber Buffer
- Quantity: 6
- Insert in the trim panel
Expanding Nut
- Quantity: 2
- Clip into rear lid
Rear Lid Latch Trim Panel
- Removing and installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, AVANT .
- Press on until it engages audibly
Rear Lid Lower Trim Panel
- Removing and installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING, AVANT .
- Press on until it engages audibly
Bolt
- 2 Nm
- Quantity: 2
Emergency Release Cover
- Unclip using the Trim Removal Wedge:3409
- Clipped in the rear lid trim panel
Emergency Triangle Cover
- Engaged in the rear lid trim panel
Bolt
- 2 Nm
- Quantity: 2
Rubber Buffer
- Quantity: 4
- Insert in the trim panel
Clip
- Replace damaged or deformed clips
- Remove any clips remaining in the rear lid mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Insert in the trim panel
- Quantity: 4
Rear Lid Upper Trim Panel
- Removing and installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
