LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING, "Low" A/C SYSTEM (OR WITHOUT A/C SYSTEM): Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Position the front seats as far back as possible.
-- Switch off the ignition.
-- Remove the right instrument panel trim -A- with the Front A/C Display Control Head -E87- -B- from the instrument panel. Refer to OVERVIEW - INSTRUMENT PANEL .
-- Remove the connector from the Front A/C Display Control Head :E87 . Refer to Front A/C Display Control Head -E87-, REMOVING AND INSTALLING, A4 AND A5 .

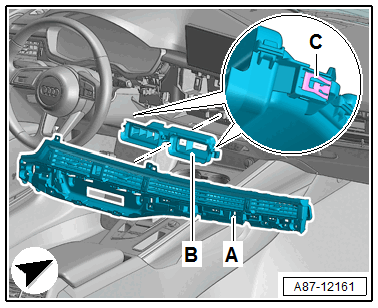

-- Remove the right instrument panel vent (wide vent) -A-. Refer to OVERVIEW - INSTRUMENT PANEL .
-- Remove the air duct to center instrument panel vents -B-.
TIP
- The air duct -B- is secured with two clips -C- (left and right).
-- Grasp in the opening in the instrument panel, release the connector -A- and remove.
-- Turn the sensor -B- 90° and remove it from the air duct -D-.
