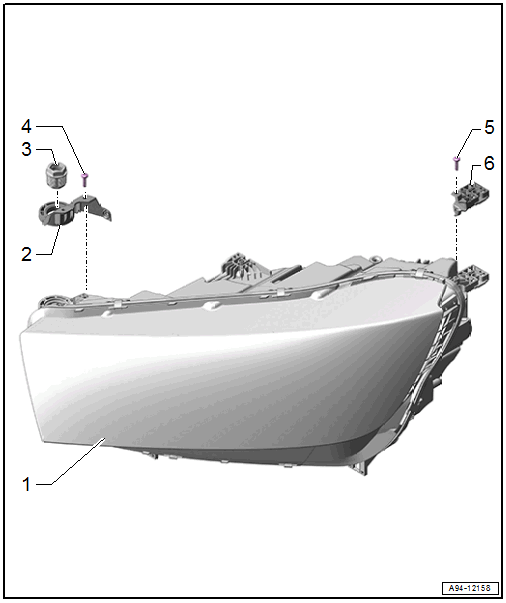

Overview - Headlamps, Headlamp Repair Set
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamps
- Inner Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
- Adjusting Nut
- For the headlamp height adjustment
- Screw
- 6 Nm
- Quantity: 3
- Screw
- 6 Nm
- Quantity: 2
- Outer Bracket
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING .
