Headlamp Housing Repair Kit, Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
TIP:
Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.
There are different repair kits for the left and right headlamps. Refer to Parts Information.
Procedure
-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the rest of the broken tab on the headlamp housing.

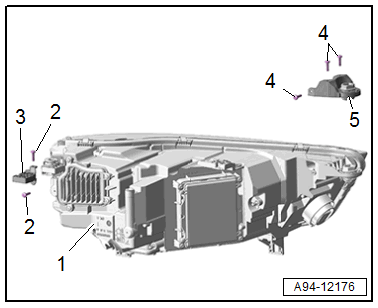

-- Install the repair kit mounting tabs -3 and 5- on the headlamp housing -1- and secure the tab with the bolts -2 and 4-.
Tightening Specifications
