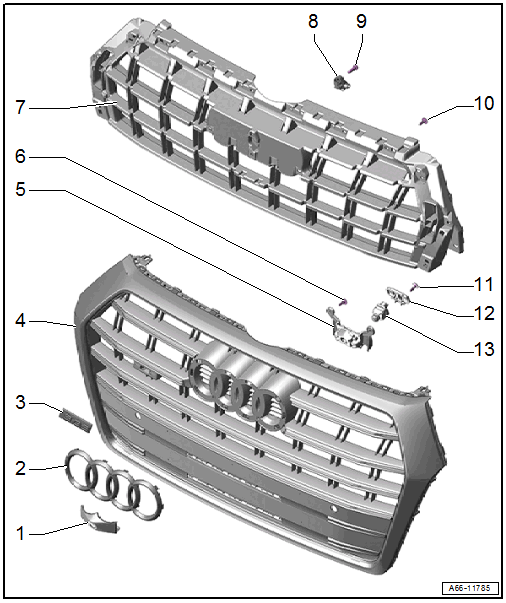

Overview - Radiator Grille
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- For the front peripheral camera
- Emblem
- Overview. Refer to OVERVIEW - NAME BADGES AND EMBLEMS .
- Name Badge
- Overview. Refer to OVERVIEW - NAME BADGES AND EMBLEMS .
- Radiator Grille
- Equipped on some models: with trim molding; when installing the trim molding pay attention to the correct engagement, at the same time the radiator grille must be removed
- Removing and Installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
- Mount
- For the front peripheral camera
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Bolt
- Quantity: 2
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Reinforcement Brace
- For the radiator grille
- Removing and Installing. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
- Pedestrian Protection Center Crash Sensor -G693-
- Removing and installing. Refer to PEDESTRIAN PROTECTION CENTER CRASH SENSOR -G693-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Bolt
- Quantity: 15
- 2 Nm
- Bolt
- Quantity: 2
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Bracket
- For the front peripheral camera
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .
- Front Peripheral Camera -R243-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - PERIPHERAL CAMERA .

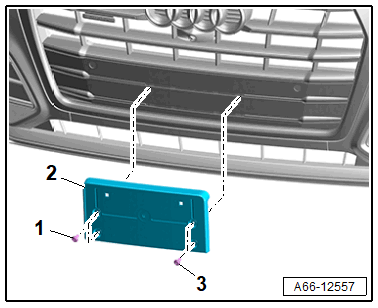

License Plate Holder, Market-Specific Version before Product Improvement - Tightening Specification
-- Tighten the screws -1 and 3- to 1 Nm.

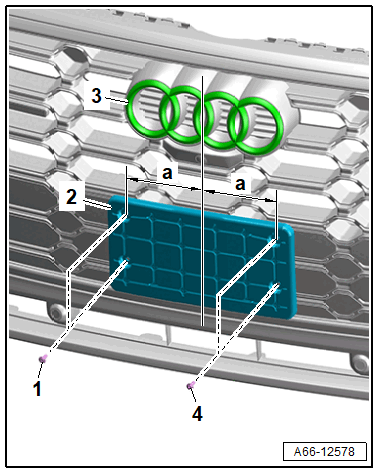

License Plate Holder, Market-Specific Version from Product Improvement - Tightening Specification
-- Tighten the screws -1 and 4- to 1 Nm.
