Cylinder Head, Installing, 3.0L Engine
Special tools and workshop equipment required
- Sealant. Refer to the Parts Information.
- Commercially available blade scraper (blade width minimum 40 mm)
Procedure
There is a risk of damaging the sealing surfaces if handled incorrectly.
- Carefully remove the sealant residue from the cylinder head and cylinder block.
- Do not use any sanding materials (sandpaper, sand stone sanding pads, sanding strips, or abrasive cloths etc.).
- May not be applied on sealing surfaces.
- The dark discoloration does not need to be removed.
- When removing the sealant residue pay attention that no loosened sealant residue gets into the channel to the engine.
- Pay attention to the neighboring work stations cleanliness and that no there is no sanding from above.
- The use of unpermitted sanding materials can cause subsequent damage, such as turbocharger damage, connecting rod bearing, etc.
Risk of injuring the eyes from sealant residue.
- Wear protective eyewear.
-- Remove the sealing lip from the cylinder head and cylinder block using only a commercially available blade scraper (blade width minimum 40 mm).
-- Remove any loose residue with a lint-free cloth.
-- Clean oil and coolant residue out of the blind holes for the cylinder head bolts in the cylinder block
- Carefully remove the sealant residue from the cylinder head and cylinder block.
- Make sure that no long grooves or scratches result.
- There must be no oil or coolant in the blind holes for the cylinder head bolts in the cylinder block.
- Only unpack the new cylinder head gasket immediately before installing.
- To prevent the cylinder head gasket silicone layer and recessed area from being damaged, always handle the gasket extremely carefully.
- If a replacement cylinder is installed, only remove the plastic base right before cylinder head is installed to protect open valves.
- Replace the bolts that were tightened with an additional turn after removing them.
- Replace the self-locking nuts, gaskets, seals and O-rings after removal.
- The cylinder head gaskets for the left and right cylinder head cannot be interchanged because they each have a different shape.
- When installing a replacement cylinder head, the contact surfaces between the roller rocker lever and cam running surface need to be oiled before the cylinder head cover can be installed.
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
- 3.0L engine: replacing the coupling after removal. Refer to -item- 19 .
- Check the vacuum hoses for damage before the assembly and replace if necessary.
- When replacing the cylinder head or cylinder head gasket, replace all of the coolant and engine oil.
-- Check if the check valve for the coolant -arrow- is inserted in the cylinder head. (Shown on cylinder bank 2.)
-- Check whether the alignment sleeves -arrows- are inserted in cylinder block. (Shown on the bank 2 cylinder block.)
-- Clean any oil or grease off the sealing surfaces.
- Be sure to check the expiration date of the sealant.
-- Cut the tube nozzle at the front marking (nozzle diameter: about 2.0 mm).
There is a risk that the lubrication system could be blocked by excess sealant.
- Do not apply sealant bead thicker than indicated.
Cylinder Bank 1 (Right):
-- Apply sealant beads -1 and 2- as shown on the clean sealing surfaces of the cylinder block and the lower timing chain cover.
- Sealant bead thickness: 2 mm.
Cylinder Bank 2 (Left):
-- Insert the new bolt -left lower arrow- and install the left intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
-- Apply sealant beads -1 and 2- as shown on the clean sealing surfaces of the cylinder block and the lower timing chain cover.
- Sealant bead thickness: 2 mm.
Continuation for Both Sides:
-- Install the cylinder head gasket on the alignment bushings in the cylinder block.
- Cylinder head gasket installation position: "oben" (top) marking or part number toward the cylinder head.
-- Position the cylinder head.
-- Install the cylinder bolts all the way in by hand.
-- Tighten the cylinder head bolts.
TIP:
It is not required to retighten the cylinder head bolts after repairs.
Further installation is performed in reverse order of removal, while noting the following:
-- Install the right intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
-- Install the coolant pipes. Refer to COOLANT PIPES, REMOVING AND INSTALLING .
-- Install the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
-- Cylinder head bank 1 (right): install the turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING, 3.0L ENGINE .

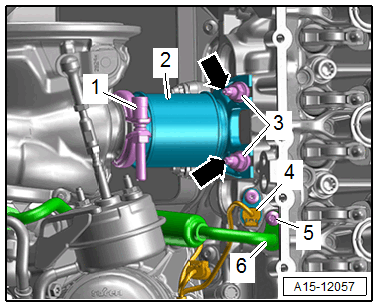

-- Cylinder head bank 2 (left): insert the coupling -2- with screw-type clamp -1-. Install the stud bolts -arrows- and tighten them.
-- Tighten the nuts -3-.

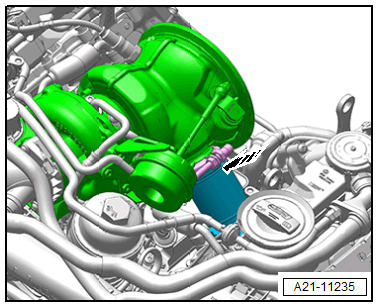

-- Tighten the screw-type clamp at the same time push the coupling by hand in the direction of the -arrow-.
- The force must have an effect at the right angle -arrow- to the coupling.

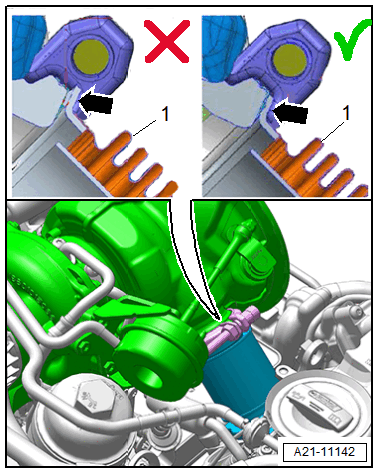

-- When tightening pay attention that the flange contour of the coupling -1- is positioned flush to the contour on the turbocharger turbine housing.
Controlling the correct installation -arrow- of the coupling -1- is possible from above via the visible area on the screw-type clamp.
-- Change the engine oil. Refer to ENGINE OIL .
-- Change the coolant. Refer to COOLANT, DRAINING AND FILLING .
Additional procedures depending on the model. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
Tightening Specifications
- Refer to OVERVIEW - CYLINDER HEAD
- Refer to Figure
- Refer to Figure
- Refer to Figure
- Refer to Figure
- Refer to OVERVIEW - CAMSHAFT TIMING CHAINS
- Refer to OVERVIEW - TURBOCHARGER
