Overview - Seat Pan Cover And Cushion, Standard Seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

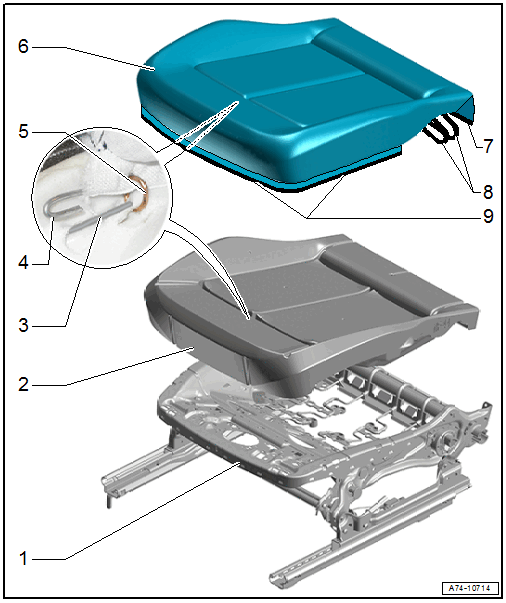

- Seat Pan
- Cushion
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD/SPORT SEAT CUSHION .
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
- Contour Wire
- Pushed into the cover mounting pocket
- Upholstery Clip
- For securing the cover to the cushion
- Replace
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Cover
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Rubber Straps
- Sewn into cover
- Check for proper seating
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
