Seat Heating Element, Removing And Installing, Standard/Sport Seat Cushion

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For the standard and sport seat, the old heating elements remain on the cushion and will be covered over by the new heating elements.

For the temperature-controlled seat, the seat heating element is a component of the cover.

Procedure

Cover and cushion separated. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .

-- Cut the wire directly on the old heating element.

-- Disconnect the modular wiring routing. Refer to MODULAR WIRING ROUTING, DISCONNECTING AND CONNECTING .

Courtesy of AUDI OF AMERICA, LLC

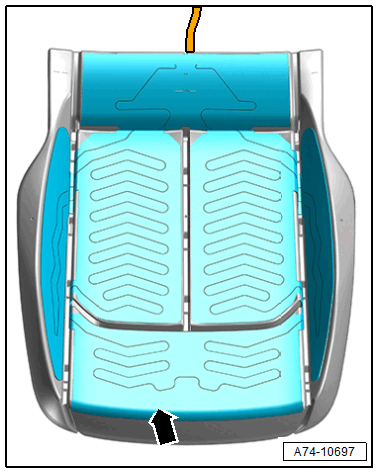

-- Align the new heating elements -arrow- on the cushion.

-- Remove the protective films from the heating elements in succession, taking care not to damage the heating elements.

-- Glue the heating elements so that they align with the old heating elements and are free of wrinkles.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

Further installation is the reverse order of removal.
