Overview - Seat Pan Cover And Cushion, Sport/Temperature-Controlled Seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

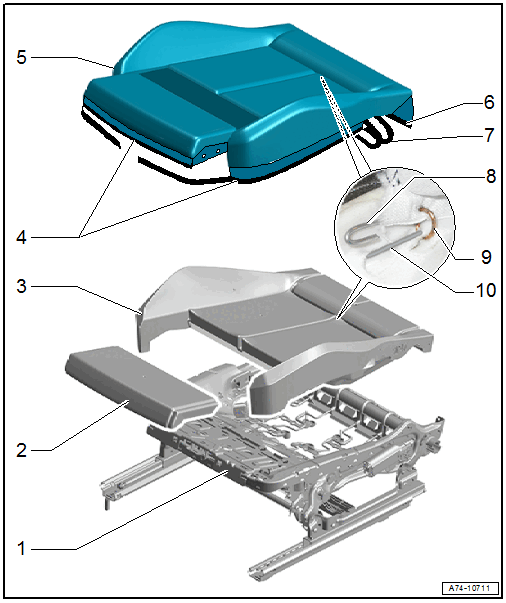

- Seat Pan
- With a seat depth adjuster
- Seat Depth Adjuster Cushion
- Removing and Installing. Refer to SEAT DEPTH ADJUSTER SEAT CUSHION, REMOVING AND INSTALLING .
- Versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
- Cushion
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Equipment versions with seat heating: attach a new heating element when replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD/SPORT SEAT CUSHION .
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Cover
- Covers and Cushions, Removing and Installing. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
- Cover and Cushion, Separating. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
- Molding
- Sewn into cover
- For engaging the cover on the seat pan
- Check for proper seating
- Rubber Band
- Sewn into cover
- Check for proper seating
- Contour Wire
- Pushed into the cover mounting pocket
- For securing the cover to the cushion
- Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers:V.A.G 1634 .
- Wire
- Encapsulated in cushion
- For securing the cover to the cushion
