Overview - Seat Heating Element, Temperature-Controlled Seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

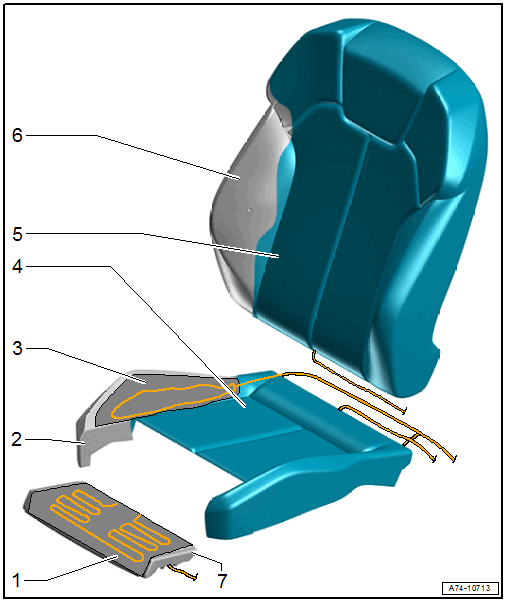

NOTE:
The Sport seat is shown.
- Seat Extension Heating Element
- Left Front Seat Extension Heating Element -Z168-
- Right Front Seat Extension Heating Element -Z169-
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
- Seat Cushion
- Seat Bolster Heating
- Driver Seat Bolster Heater -Z31-
- Front Passenger Seat Bolster Heater -Z33-
- The heating element is glued to the seat bolster cushion
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD/SPORT SEAT CUSHION .
- Allocation.
- Seat Heating Element
- Left Front Seat Heating Element -Z45-
- Right Front Seat Heating Element -Z46-
- Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
- Allocation.
- Backrest Heating Element
- Left Front Seat Heated Backrest -Z116-
- Right Front Seat Heated Backrest -Z117-
- Heating element sewn into seat cover; if faulty, replace the seat cover. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Allocation.
- Backrest Cushion
- Cushion
- For the seat depth adjustment
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
