Overview - Seat Heating Element, Standard/Sport Seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

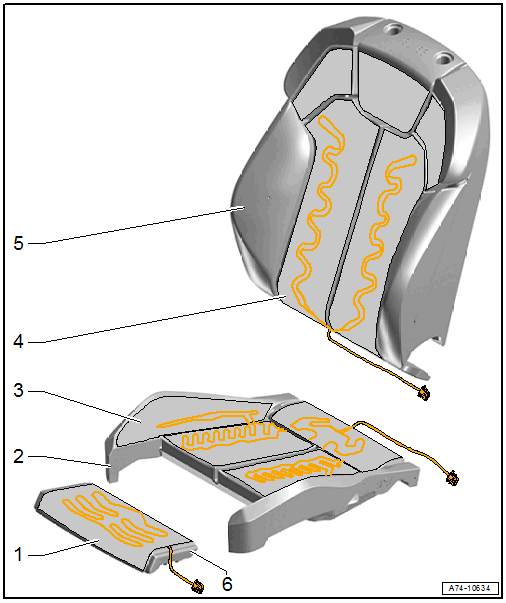

NOTE:
The Sport seat is shown.
- Seat Extension Heating Element
- Left Front Seat Extension Heating Element -Z168-
- Right Front Seat Extension Heating Element -Z169-
- Removing and Installing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
- Seat Cushion
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD/SPORT SEAT CUSHION .
- Seat Heating Element
- Left Front Seat Heating Element -Z45-
- Right Front Seat Heating Element -Z46-
- Replacing. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, STANDARD/SPORT SEAT CUSHION .
- Backrest Heating Element
- Left Front Seat Heated Backrest -Z116-
- Right Front Seat Heated Backrest -Z117-
- Replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
- Backrest Cushion
- When replacing, apply a new heating element. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
- Cushion
- For the seat depth adjustment
- When replacing, apply a new heating element. Refer to SEAT HEATING ELEMENT, REMOVING AND INSTALLING, SEAT DEPTH ADJUSTER .
