Brake System Pressure Reservoir -VX70-, REMOVING AND INSTALLING: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
New pressure reservoir:

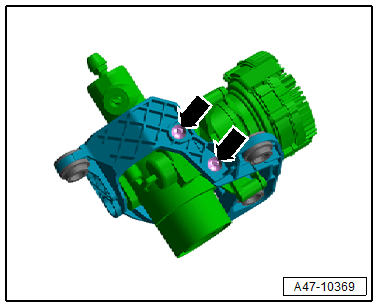

-- Attach the bracket with bolts -arrows- to 8 Nm.
-- Pre-bleed the new Brake System Pressure Reservoir -VX70- before installing. Refer to Brake System Pressure Reservoir -VX70-, PRE-BLEEDING .
-- Remove the : VAG1869/2 .
-- Remove all cloths from the vehicle that were previously placed down.
-- Bleed the brake system. Refer to HYDRAULIC SYSTEM, BLEEDING .
WARNING:
Risk of accident!
- Make sure the brakes are working correctly before driving the vehicle for the first time.
