Brake Booster, Removing And Installing, Electromechanical Brake Booster: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi SQ5, and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition.

-- Disconnect the brake pedal from the brake booster. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER .

-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .

-- Remove the Brake System Pressure Reservoir -VX70-. Refer to Brake System Pressure Reservoir -VX70-, REMOVING AND INSTALLING .

-- Remove the brake fluid reservoir. Refer to BRAKE FLUID RESERVOIR, REMOVING AND INSTALLING .

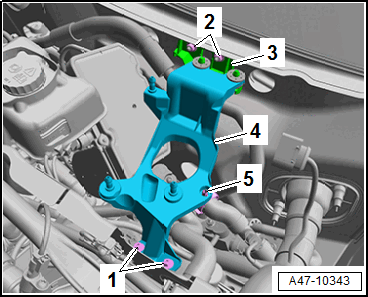

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the coolant hose -5- from the bracket -4- for the pressure reservoir.

-- Pull the pressure reservoir bracket -3- upward out of the bracket and remove.

-- Disconnect the connectors -1-.

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of skin irritation.

To prevent skin contact with brake fluid, wear chemical resistant safety gloves.

-- Remove the bolts -2 and 3-.

-- To protect against escaping brake fluid, place enough lint-free cloths in the area below the brake booster.

-- Remove the union bolts -arrows- for the brake lines, then remove the brake lines from the brake master cylinder and move them slightly to the side.

-- Immediately seal the open connection points with clean plugs from the : VAS6122 .

-- Remove the windshield wiper motor. Refer to Windshield Wiper Motor -V-, REMOVING AND INSTALLING .

-- Remove the brake booster with the brake master cylinder.
