Overview - Trim Molding And Covers, Windshield Frame Trim

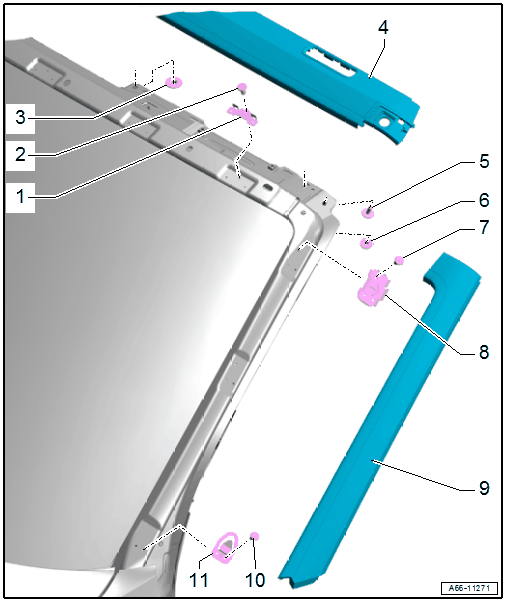

Fig 1: Exploded View Of Windshield Frame Trim

Courtesy of AUDI OF AMERICA, LLC

1. Clip
   • For the windshield frame trim
   • Quantity: 5
   • Replace after removing.
   • Removing and Installing. Refer to WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
2. Pop Rivet
   • Quantity: 3
   • For the clip
   • Refer to the Parts Information.
3. Nut
   • 4.5 Nm
   • Quantity: 2
4. Windshield Frame Trim
   • Removing and Installing. Refer to WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
5. Bolt
   • Tightening specification OVERVIEW - DOOR SEALS .
6. Nut
   • 4.5 Nm
7. Pop Rivet
   • Quantity: 3
   • For the clip
   • Refer to the Parts Information.
8. Clip
   • For the side windshield frame trim
   • Quantity: 2
   • Replace after removing.
   • Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
9. Side Windshield Frame Trim
   • Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
10. Pop Rivet
    • Quantity: 2
    • For the clip
    • Refer to the Parts Information.
11. Clip
    • For the side windshield frame trim
    • Removing and Installing. Refer to SIDE WINDSHIELD FRAME TRIM, REMOVING AND INSTALLING .
