Overview - Door Seals

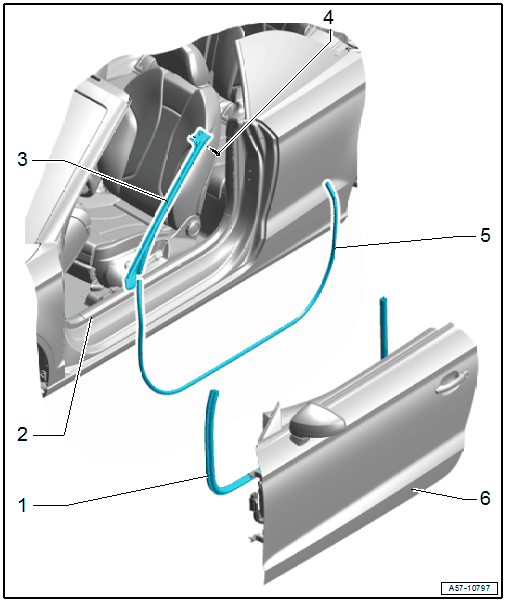

Fig 1: Exploded View Of Door Seals

GWWA57-10797

Courtesy of AUDI OF AMERICA, LLC

Outer Door Seal
- Replace after removing.
- Removing and Installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
Body
A-Pillar Door Seal
- Removing and Installing. Refer to A-PILLAR DOOR SEAL, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Inner Door Seal
- Removing and Installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
Door
