Overview - Fender

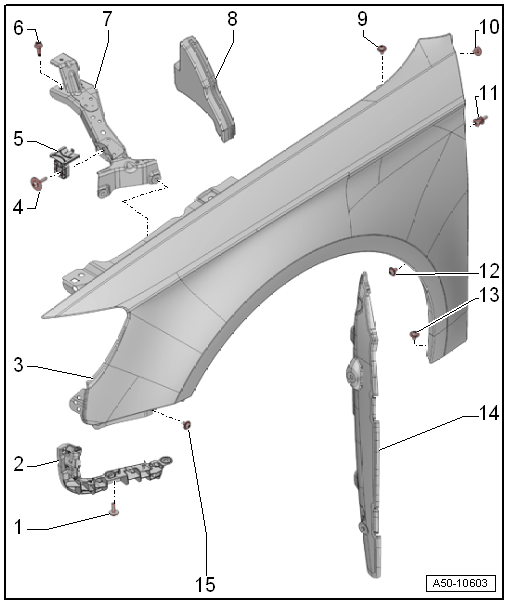

Fig 1: Exploded View Of Fender

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 4.5 Nm
- Quantity: 2
Mount
- For the bumper cover
- To secure the headlamp
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Repair kit. Refer to OVERVIEW - FENDER REPAIR KIT .
Bolt
- Tightening specification. Refer to HEADLAMPS .
Mount
- For headlamp
Bolt
- 8 Nm
- Quantity: 2
Lower Bracket
- For the fender
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
Seal
- Self-adhesive inside on the fender
Bolt
- 8 Nm
- Quantity: 3
Bolt
- 8 Nm
Expanding Rivet
- Quantity: 2
Bolt
- 8 Nm
- Quantity: 2
Bolt
- 8 Nm
- Quantity: 2
End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 2
