Overview - Fender Repair Kit

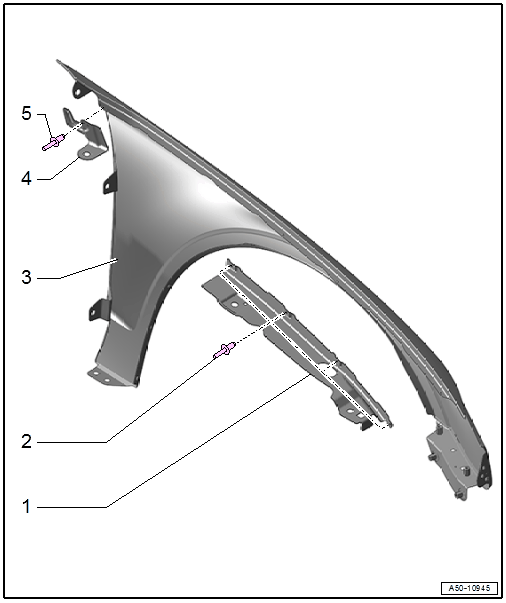

Fig 1: Exploded View Of Fender Repair Kit
GWWA50-10945Courtesy of AUDI OF AMERICA, LLC
  1. Front Bracket
  2. Pop Rivet
    • Quantity: 4
  3. Fender
  4. Rear Bracket
  5. Pop Rivet
    • Quantity: 2
